BY RANDY WILLIAMS
What’s the difference between R-Value and U-Factor?
You're probably aware of these measures of thermal performance but might be wondering how they differ, why U-Factor is used for measuring windows, and how to use these measures when selecting product. Here to explain is guest contributor Randy Williams.
We were taught in junior high that hot air rises, the key to that phrase is air. Heat itself moves from someplace warm to someplace cool. A good example of this happens often in cold climates. When standing in front of an old window on a cold night, you feel a chill. This chill is the result of heat leaving your body and moving towards the colder surface of the window glass, heat moving from hot to cold. To slow this movement of heat, we use insulation. By putting on another layer of clothes, we reduce or resist the movement of heat. In other words, when you put on a sweater, you’re adding R-Value.
What is the difference between R-Value and U-Factor?
R-Value is the resistance to heat flow, conductive heat flow to be specific. With R-Value, the higher the number, the more resistance to the movement of heat — so bigger is better. The inverse of R-Value is U-Factor, which is another term that is commonly used to measure thermal performance.

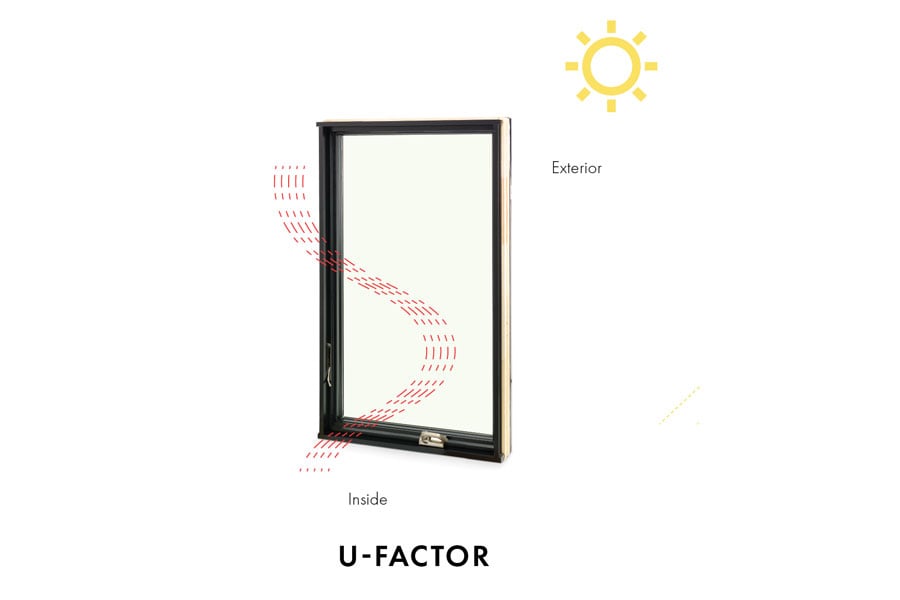

U-Factor is the rate or speed of heat loss (or gain) that transmits through 1 square foot of building assembly or product (roof, floor, wall, window, etc.) in one hour with a 1°F temperature difference between the two sides. With U-Factor, the smaller the number, the slower the rate of heat loss — so smaller is better. It is measured on a scale from 0 to 1 with most U-Factors being less than one.
A typical window in my very cold climate of Minnesota might have a U-factor of .30. For some, U-.30 might not be relatable. We can convert U-factor to R-value with the simple formula: 1/U-factor=R-value. That U-.30 window will have an R-value of 3.33. We can also convert R-value to U-factor by the formula 1/R-value=U-factor.
Why R-Value and U-Factor matter

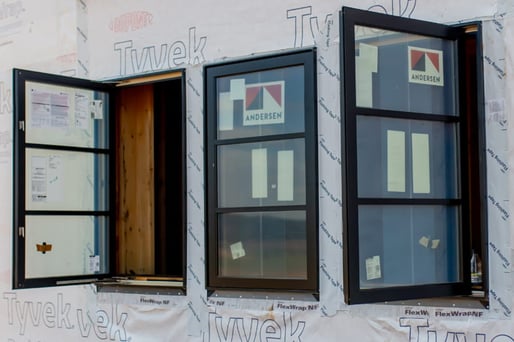

R-Value and U-Factor help you understand how insulating various building materials will be, so they’re useful measurements when looking for an energy-efficient product. Window manufacturers are required to indicate the rate of window heat loss through their window assembly using the U-Factor value. This is the certified value that appears on the performance label that you’ll find on all Andersen® windows and doors. You can use this value to help you select products that will meet code requirements and project goals for energy efficiency and since this value is used across the industry, you can also use it to compare products from different manufacturers. Remember that when it comes to U-Factor, lower numbers are better.

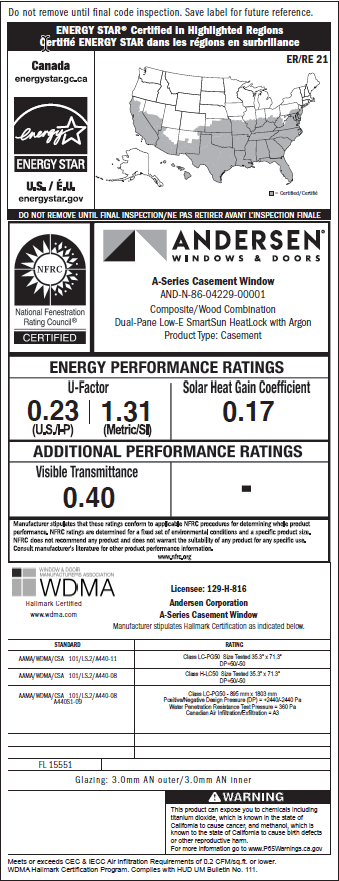

U-Factor will be listed on Andersen performance labels, which include criteria that’s been established by industry groups, including the
National Fenestration Ratings Council (NFRC) — a nonprofit organization that promotes the advancement of energy-efficient windows,
doors, and skylights.
The reason U-Factor is the metric for windows is because a window is an assembly of products. The glass will have a different heat flow than the frame. We cannot simply add the R-Values of these different components together. We have to calculate both series and parallel paths through the different materials by using a weighted average of the U-Factors of the various pieces that create the window. These calculations get us into the weeds, so we won’t go there. Just be aware, calculating the insulation values of a window (or any assembly of products) isn’t as easy as simply adding R-Values together.
Loading component...
How do you calculate R-Value?
The R-Value is the reciprocal of the U-Factor. If you are simply looking to calculate the R-Value of a window or door, you can take the U-Factor and calculate the R-Value using this equation: R=1/U.
However, if you are seeking to understand the effective R-Value, explained above, it’s more complex and beyond the scope of the article. But be aware it requires knowing the area of framing, the area of insulation, and area of windows and doors of the entire wall assembly. You also need to know the U-Factor of each of these components. What starts off as an R-20 wall might end up being R-12 or less by the time all the component insulation values and ratios are calculated. The effective R-Value is needed when calculating the heating and/or cooling needs of the structure.
